Pluggable Terminal Block-PlugsPGF-508
PGF-508
5.08mm，300V，10A
| Type | Pluggable Terminal Block-Plugs |
| Classification | Spring plug |
| Model | KPG-381 |
| Pitch | 3.81mm |
| Number of connections | 02P~24P |
| Color | Green |
| Pitch[mm] | 3.81 |
| Technical data ，in accordance with IEC/DIN and VDE | |
| Insulating material group | I |
| Surge voltage category/Contamination class | III/3 III/2 II/2 |
| Rated voltage[V] | 160 160 320 |
| Rated surge voltage[kV] | 2.5 2.5 2.5 |
| Nominal current/Cross section[A]/[mm2] | 8/1.5 |
| Maximum load curren/Cross section[A]/[mm2] | 8/1.5 |
| Capacity connection | |
| Rigid wire/flexible wire/Wire gauge[mm2]/[mm2]/AWG | 0.14-1.5/0.14-1.5/26-16 |
| Flexible wire with cold press head with/without plastic sleeve | 0.25-0.5/0.25-1.5 |
| Multi wire connection（Two wires with the same cross-sectional area） | |
| Rigid wire/flexible wire[mm2] | - |
| Flexible wire with cold press head with/without plastic sleeve[mm2] | - |
| Flexible wire with cold press head with plastic sleeve[mm2] | - |
| Stripping length[mm] | 9 |
| Internal cylindrical gauge(IEC 60 947-1) | A1 |
| Thread | - |
| Torque[Nm] | - |
| Insulating material | PA |
| Inflammability class in acc.with UL 94 | V0 |
| Approva ldata(UL/CUL/CSA) | |
| Rated voltage/Nominal current/Wire gauge UL/CUL:[V]/[A]/AWG | 300/8/28-16 |
| CSA:[V]/[A]/AWG | 300/8/28-16 |
If you want to have a comprehensive and in-depth understanding of our products, Jointlean can provide samples for users to experience

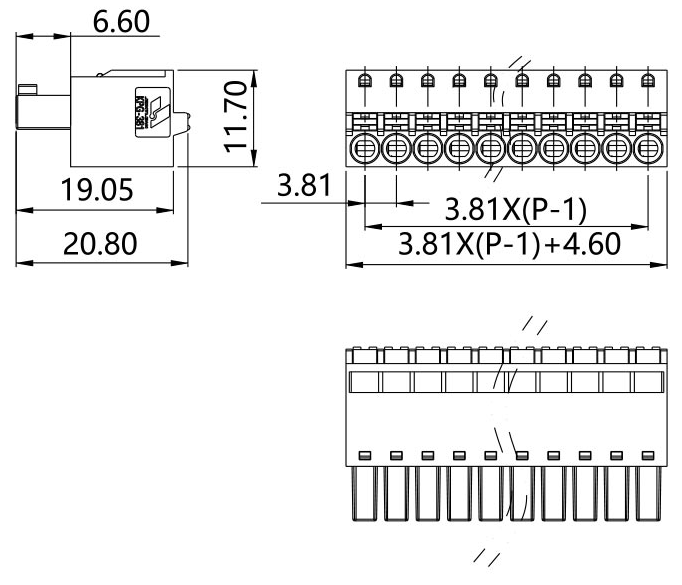

KPG-381
