PCB Connector-PlugPGF-508
PGF-508
5.08mm，300V，10A
| Category | PCB Connector-Plug |
| Model | KPG-250 |
| Pitch | 2.50mm |
| Poles | 02P~18P |
| Plug-in direction | Plug-in directionparallel to the conductor axis |
| Color | Green |
| Pitch[mm] | 2.50 |
| Technical data in accordance with IEC/DIN and VDE | |
| Insulation materialgroup | I |
| Surge voltagecategory/contamination class | III/3 III/2 II/2 |
| Rated voltage[V] | 160 160 320 |
| Rated surge voltage[kV] | 2.5 2.5 2.5 |
| Rated current/Cross section[A]/[mm2] | 4/0.2-0.5 |
| Maximum load current/Cross section[A]/[mm2] | 4/02-0.5 |
| Capacity connection | |
| Rigid/flexible conductor/conductor sizes[mm2]/[mm2]/AWG | 0.2-0.5/0.2-0.5/28-16 |
| Flexible conductors with cold pressing tip with/without plastic sleeve | 0.25-0.5/0.25-0.5 |
| Multiple connection（2 conductors with same cross section） | |
| Rigid/flexible conductor[mm2] | / |
| Stranded with ferrule without/with plastic sleeve[mm2] | / |
| Stranded with ferrule with plastic sleeve[mm2] | / |
| Stripping length[mm] | 10 |
| Internal cylindrical gauge(IEC 60 947-1) | / |
| Thread | / |
| Torque[Nm] | / |
| Insulating material | PA |
| Inflammability class in acc.with UL 94 | V0 |
| Approva ldata(UL/CUL and CSA) | |
| Rated voltage/Rated current/conductor sizes UL/CUL:[V]/[A]/AWG | 150/4/28-20 |
| CSA:[V]/[A]/AWG | 150/4/28-20 |
Jointlean provides samples for user experience

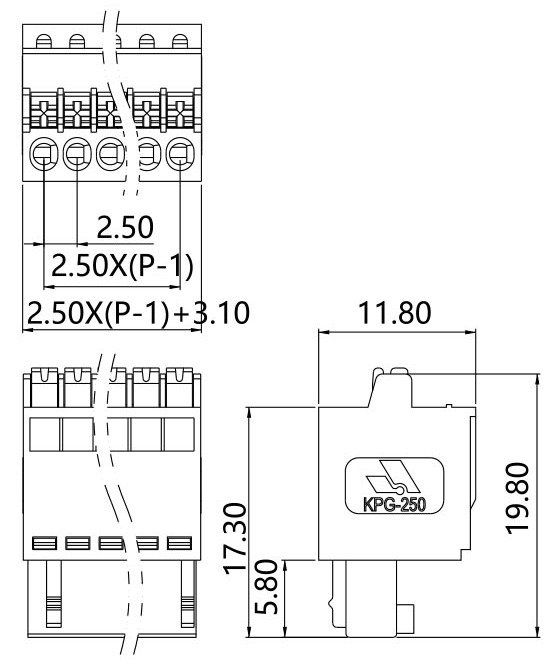

KPG-250
