Pluggable Terminal Block-Plugs

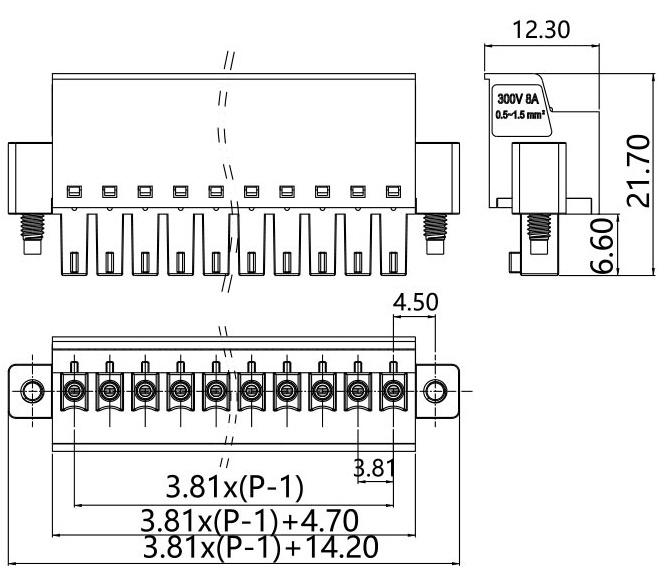

Pluggable Terminal Block-PlugsPGF-381N
PGF-381N

3.81mm,300V,8A

Basic information
Type
Pluggable Terminal Block-Plugs
ClassificationSingle layer screw plug
ModelPGF-381N
Pitch3.81mm
Number of connections02P~24P
Plug-in directionPlug-in direction parallel to the conductor axis
ColorGreen
Main technical parameters
Pitch[mm]3.81
Technical data ,in accordance with IEC/DIN and VDE
Insulating material group I
Surge voltage category/Contamination classIII/3  III/2  II/2
Rated voltage[V]160  160  320
Rated surge voltage[kV]2.5   2.5  2.5
Nominal current/Cross section[A]/[mm2]8/1.5
Maximum load curren/Cross section[A]/[mm2]8/1.5
Capacity connection
Rigid wire/flexible wire/Wire gauge[mm2]/[mm2]/AWG0.08-1.5/0.08-1.5/28-16
Flexible wire with cold press head  with/without plastic sleeve0.25-0.5/0.25-1.5
Multi wire connection(Two wires with the same cross-sectional area)
Rigid wire/flexible wire[mm2]0.08-0.5/0.08-0.75
Flexible wire with cold press head  with/without plastic sleeve[mm2]0.25-0.34
Flexible wire with cold press head  with plastic sleeve[mm2]0.5
Stripping length[mm]7
Internal cylindrical gauge(IEC 60 947-1)A1
ThreadM2
Torque[Nm]0.22-0.25
Insulating materialPA
Inflammability class in acc.with UL 94V0
Approva ldata(UL/CUL/CSA)
Rated voltage/Nominal current/Wire gauge  UL/CUL:[V]/[A]/AWG300/8/30-14
                                             CSA:[V]/[A]/AWG300/8/28-16
