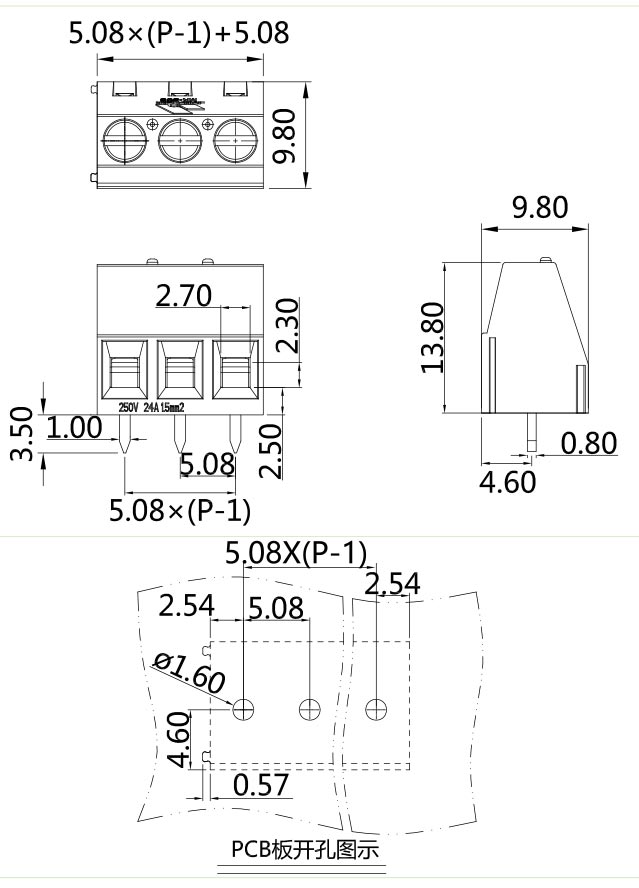

Fixed terminal blockLMK-508
LMK-508
5.08mm,300V,10A
| Type | Fixed terminal block |
| Model | MK-508 |
| Pitch | 5.08mm |
| Number of connections | 02P,03P |
| Plug-in direction | Wiring direction parallel to the PCB |
| Color | Green |
| Pitch[mm] | 5.08 |
| Hole diameter[mm] | 1.6 |
| Pin dimensions[mm]x[mm] | 0.8x1 |
| Technical data ，in accordance with IEC/DIN and VDE | |
| Insulating material group | I |
| Surge voltage category/Contamination class | III/3 III/2 II/2 |
| Rated voltage[V] | 250 320 630 |
| Rated surge voltage[kV] | 4 4 4 |
| Nominal current/Cross section[A]/[mm2] | 17.5/1.5 |
| Maximum load curren/Cross section[A]/[mm2] | 24/2.5 |
| Capacity connection | |
| Rigid wire/flexible wire/Wire gauge[mm2]/[mm2]/AWG | 0.14-2.5/0.14-1.5/26-16 |
| Flexible conductor with bare tubular/tubular pre-insulated tip[mm2]/[mm2] | 0.25-1.0/0.25-1.5 |
| Multi wire connection（Two wires with the same cross-sectional area） | |
| Rigid wire/flexible wire[mm2]/[mm2] | 0.14-1/0.14-0.75 |
| Flexible conductor with bare tubular tip[mm2] | 0.25-0.5 |
| Flexible conductor with tubular pre-insulated TWIN[mm2] | 0.5-1 |
| Stripping length[mm] | 7 |
| Internal cylindrical gauge(IEC 60 947-1) | A1 |
| Thread | M3 |
| Torque[Nm] | 0.5-0.6 |
| Insulating material | PA |
| Inflammability class in acc.with UL 94 | V0 |
| Approva ldata(UL/CUL/CSA) | |
| Rated voltage/Nominal current/Wire gauge UL/CUL:[V]/[A]/AWG | 300/10/30-14 |
| CSA:[V]/[A]/AWG | 300/10/28-14 |
If you want to have a comprehensive and in-depth understanding of our products, Jointlean can provide samples for users to experience
MK-508
