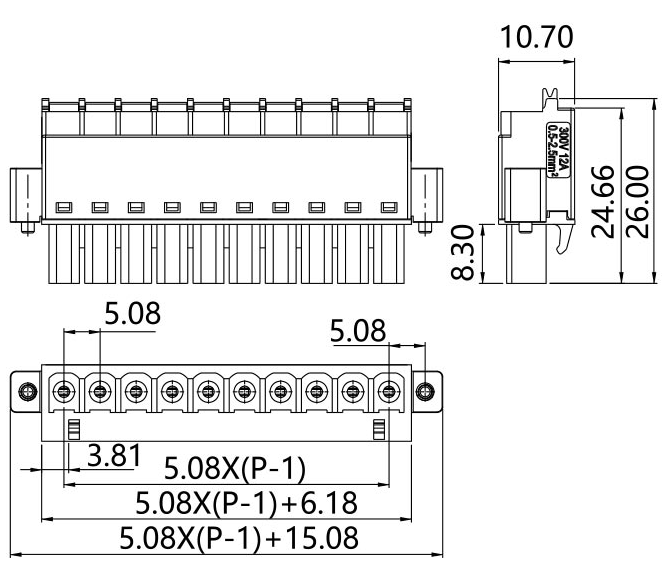

PCB Connector-PlugLKPGF-508

LKPGF-508

5.08mm,300V,10A

DownloadPDF

Basic Information

Category	PCB Connector-Plug
Model	LKPGF-508
Pitch	5.08mm
Poles	02P~24P
Plug-in direction	Plug-in direction parallel to the conductor axis
Color	Green

Main Technical Parameters

Pitch[mm]	5.08
Technical data in accordance with IEC/DIN and VDE
Insulation materialgroup	III
Surge voltagecategory/contamination class	III/3 III/2 II/2
Rated voltage[V]	250 320 630
Rated surge voltage[kV]	4 4 4
Rated current/Cross section[A]/[mm2]	12/2.5
Maximum load current/Cross section[A]/[mm2]	12/2.5
Capacity connection
Rigid/flexible conductor/conductor sizes[mm2]/[mm2]/AWG	0.2-2.5/0.2-2.5/24-12
Flexible conductors with cold pressing tip 帶/不帶絕緣套管	0.25-2.5/0.25-2.5
Multiple connection（2 conductors with same cross section）
Rigid/flexible conductor[mm2]	-
帶冷壓頭的柔性導(dǎo)線，冷壓頭帶絕緣套管[mm2]	-
帶冷壓頭的柔性導(dǎo)線，冷壓頭不帶絕緣套管[mm2]	0.5-1
Stripping length[mm]	10
Internal cylindrical gauge(IEC 60 947-1)	A2
Thread	-
Torque[Nm]	-
Insulating material	PB+GF
Inflammability class in acc.with UL 94	V0
Approva ldata(UL/CUL and CSA)
Rated voltage/Rated current/conductor sizes UL/CUL:[V]/[A]/AWG	300/10/26-12
CSA:[V]/[A]/AWG	300/12/24-12
