Pluggable Terminal Block-Sockets

Pluggable Terminal Block-SocketsLSTC-508
LSTC-508

5.08mm,300V,8A

Basic information
Type
Pluggable Terminal Block-Sockets
ModelLSTC-508
Pitch5.08mm
Number of connections02P~24P
Plug-in directionPlug-in direction parallel to the PCB
ColorGreen
Main technical parameters

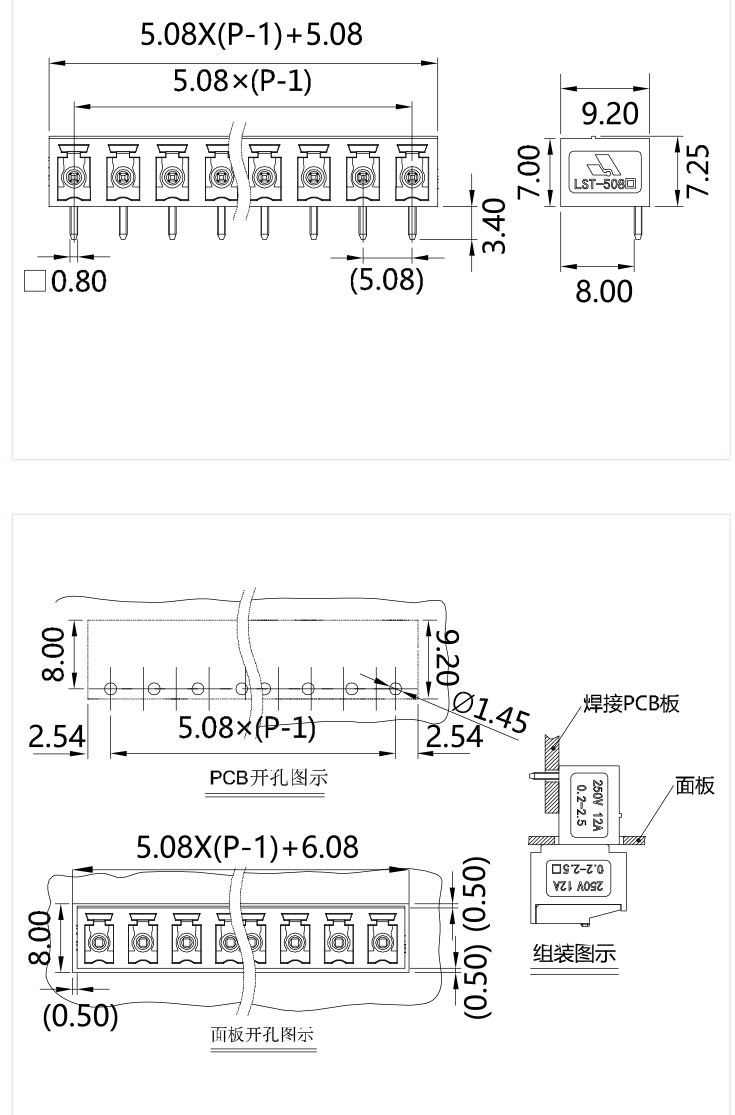

Pitch[mm]5.08
Hole diameter[mm]1.45
Pin dimensions[mm]x[mm]0.8x0.8
Technical data ,in accordance with IEC/DIN and VDE
Insulating material group I/llla
Surge voltage category/Contamination classIII/3  III/2  II/2
Rated voltage[V]250  320  400
Rated surge voltage[kV]4      4     4
Nominal current[A]8
Maximum load current[A]8
Insulating materialPA/PBT
Inflammability class in acc.with UL 94V0
Approva ldata(UL/CUL/CSA)
Rated voltage/Nominal current  UL/CUL:[V]/[A]300/10
                                  CSA:[V]/[A]300/10
Fixing screws
for header with threaded flange,header must be screwed before soldering
