Pluggable Terminal Block-SocketsSTC-350V
STC-350V
3.50mm,300V,8A
| Type | Pluggable Terminal Block-Sockets |
| Model | ST1LDF-508 |
| Pitch | 5.08mm |
| Number of connections | 2x02P~2x24P |
| Plug-in direction | Plug-in direction parallel to the PCB |
| Color | Green |
| Pitch[mm] | 5.08 |
| Hole diameter[mm] | 1.6 |
| Pin dimensions[mm]x[mm] | 1x1 |
| Technical data ，in accordance with IEC/DIN and VDE | |
| Insulating material group | I/llla |
| Surge voltage category/Contamination class | III/3 III/2 II/2 |
| Rated voltage[V] | 250 320 400 |
| Rated surge voltage[kV] | 4 4 4 |
| Nominal current[A] | 10 |
| Maximum load current[A] | 10 |
| Insulating material | PA/PBT |
| Inflammability class in acc.with UL 94 | V0 |
| Approva ldata(UL/CUL/CSA) | |
| Rated voltage/Nominal current UL/CUL:[V]/[A] | 300/10 |
| CSA:[V]/[A] | 300/10 |
| Fixing screws | |
| for header with threaded flange，header must be screwed before soldering |
If you want to have a comprehensive and in-depth understanding of our products, Jointlean can provide samples for users to experience

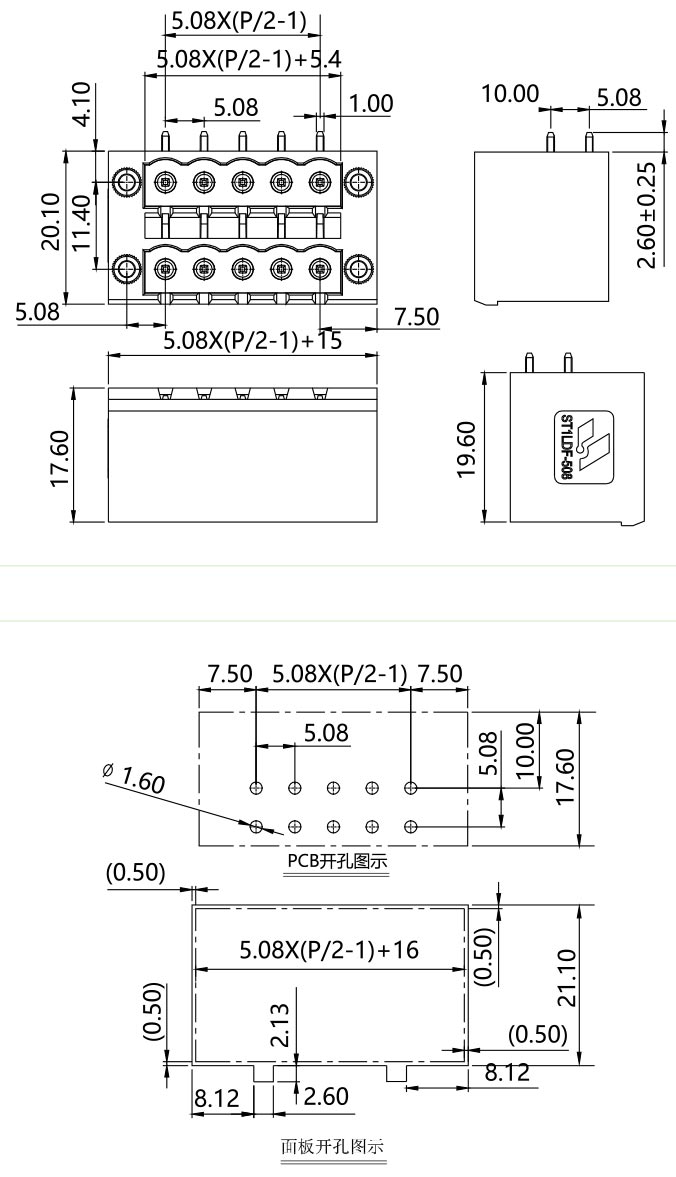

ST1LDF-508
