Pluggable Terminal Block-Sockets

Pluggable Terminal Block-SocketsSTD-508V
STD-508V

5.08mm,300V,10A

Basic information
Type
Pluggable Terminal Block-Sockets
ModelSTD-508V
Pitch5.08mm
Number of connections2x02P~2x24P
Plug-in directionplug-in direction vertical to the PCB
ColorGreen
Main technical parameters

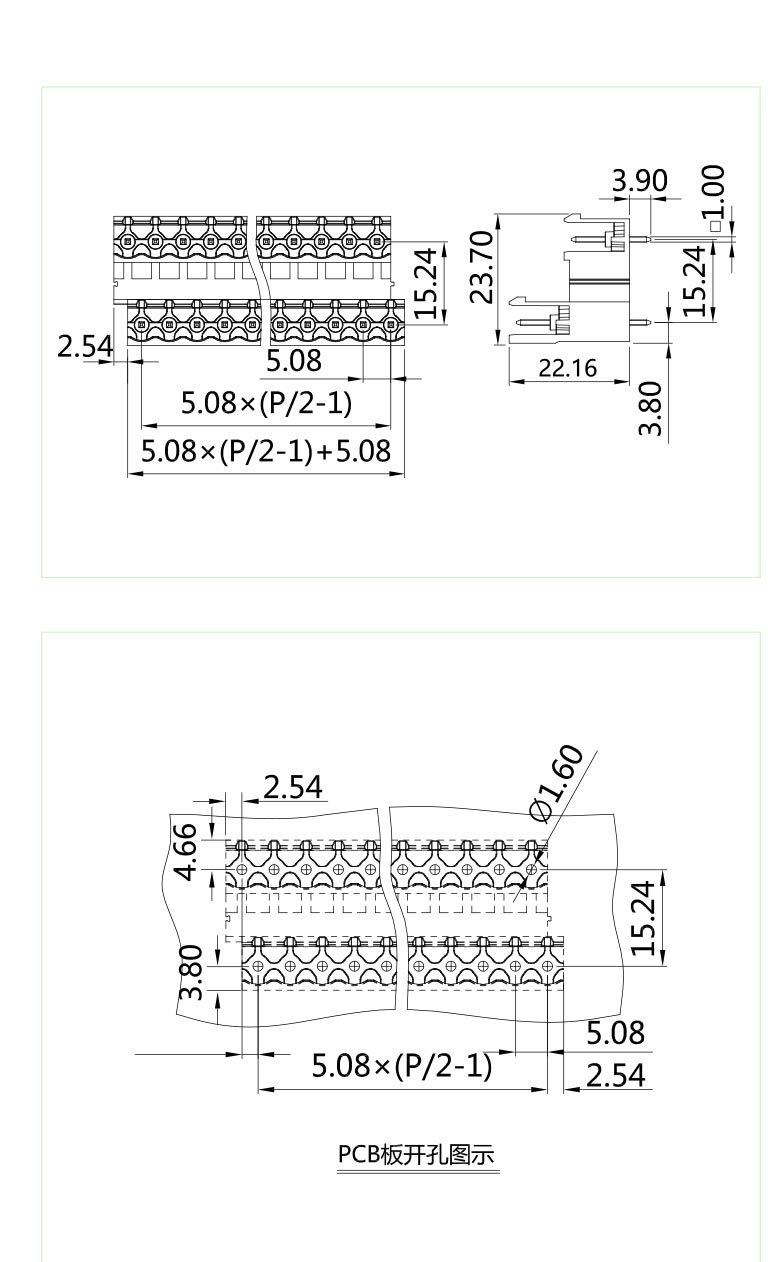

Pitch[mm]5.08
Hole diameter[mm]1.6
Pin dimensions[mm]x[mm]1x1
Technical data ,in accordance with IEC/DIN and VDE
Insulating material group I/llla
Surge voltage category/Contamination classIII/3  III/2  II/2
Rated voltage[V]250  320  400
Rated surge voltage[kV]4      4     4
Nominal current[A]10
Maximum load current[A]10
Insulating materialPA/PBT
Inflammability class in acc.with UL 94V0
Approva ldata(UL/CUL/CSA)
Rated voltage/Nominal current  UL/CUL:[V]/[A]300/10
                                  CSA:[V]/[A]300/10
Fixing screws
for header with threaded flange,header must be screwed before soldering
