Pluggable Terminal Block-Sockets

Pluggable Terminal Block-SocketsST1LDC-381
ST1LDC-381

3.81mm

Basic information
Type
Pluggable Terminal Block-Sockets
ModelST1LDC-381
Pitch3.81mm
Number of connections2x02P~2x24P
Plug-in directionPlug-in direction parallel to the PCB
ColorGreen
Main technical parameters

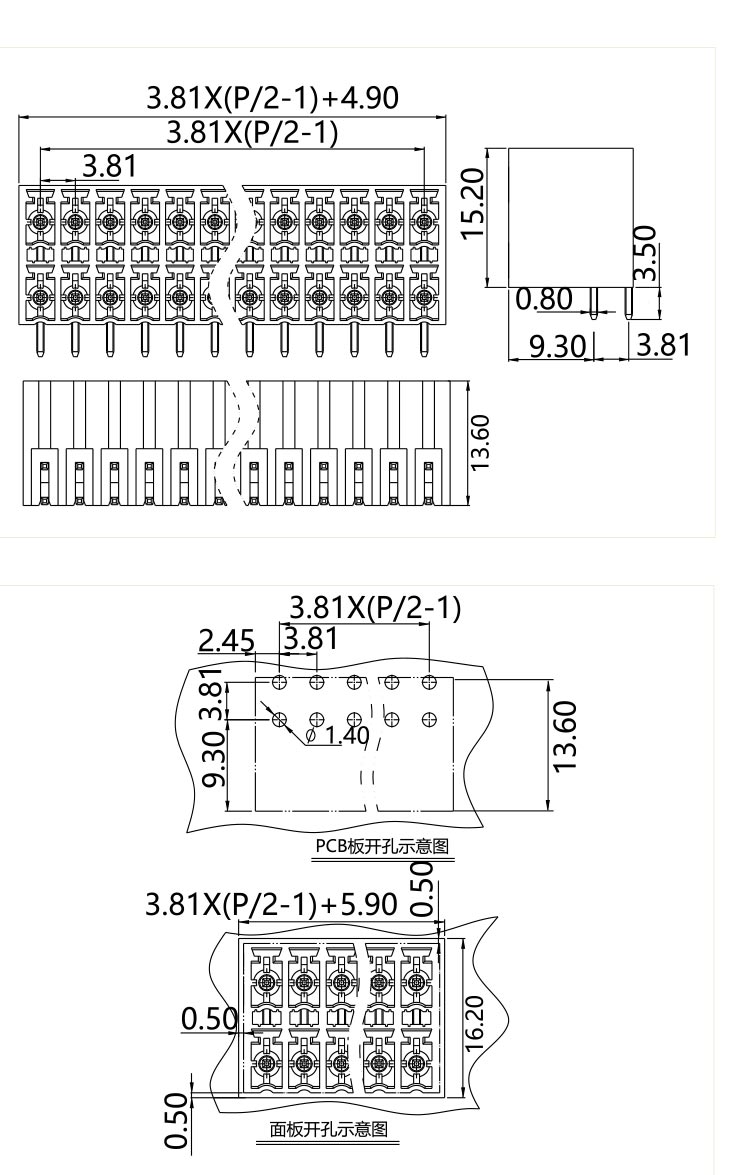

Pitch[mm]3.81
Hole diameter[mm]1.45
Pin dimensions[mm]x[mm]0.8x0.8
Technical data ,in accordance with IEC/DIN and VDE
Insulating material group I/llla
Surge voltage category/Contamination classIII/3  III/2  II/2
Rated voltage[V]160  200  250
Rated surge voltage[kV]2.5   2.5  2.5
Nominal current[A]6
Maximum load current[A]6
Insulating materialPA/PBT
Inflammability class in acc.with UL 94V0
Approva ldata(UL/CUL/CSA)
Rated voltage/Nominal current  UL/CUL:[V]/[A]
                                  CSA:[V]/[A]
Fixing screws
for header with threaded flange,header must be screwed before soldering
