Pluggable Terminal Block-Sockets

Pluggable Terminal Block-SocketsSTF-381V
STF-381V

3.81mm,300V,8A

Basic information
Type
Pluggable Terminal Block-Sockets
ModelSTF-381V
Pitch3.81mm
Number of connections02P~24P
Plug-in directionPlug-in direction vertical to the PCB
ColorGreen
Main technical parameters
Pitch[mm]3.81
Hole diameter[mm]1.45
Pin dimensions[mm]x[mm]0.8x0.8
Technical data ,in accordance with IEC/DIN and VDE
Insulating material group I/llla
Surge voltage category/Contamination classIII/3  III/2  II/2
Rated voltage[V]160  160  250
Rated surge voltage[kV]2.5   2.5  2.5
Nominal current[A]8
Maximum load current[A]8
Insulating materialPA/PBT
Inflammability class in acc.with UL 94V0
Approva ldata(UL/CUL/CSA)
Rated voltage/Nominal current  UL/CUL:[V]/[A]300/8
                                  CSA:[V]/[A]300/8
Fixing screwsSelf-tapping screws
for header with threaded flange,header must be screwed before solderingISO 1481-ST 2.2X4.5 C或ISO 7049-ST 2.2X4.5 C
Accessory products

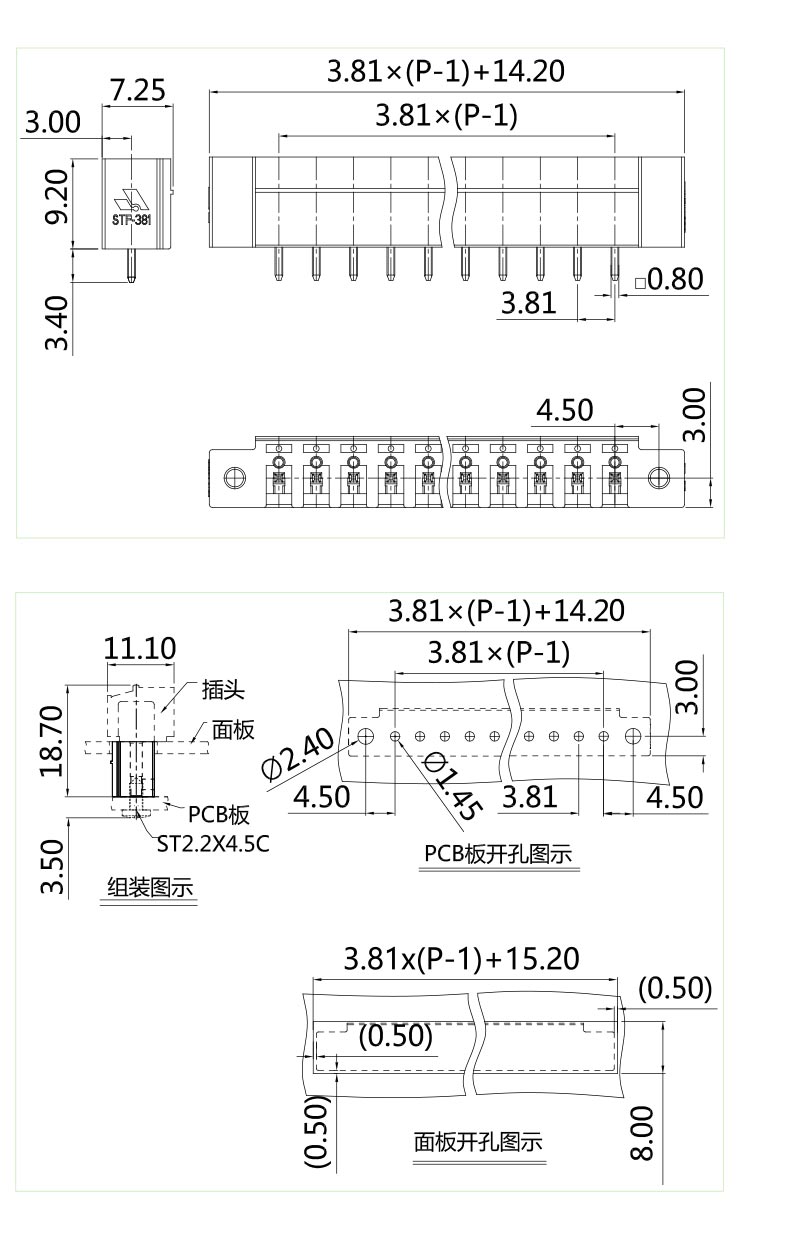

STF-381V圖紙
